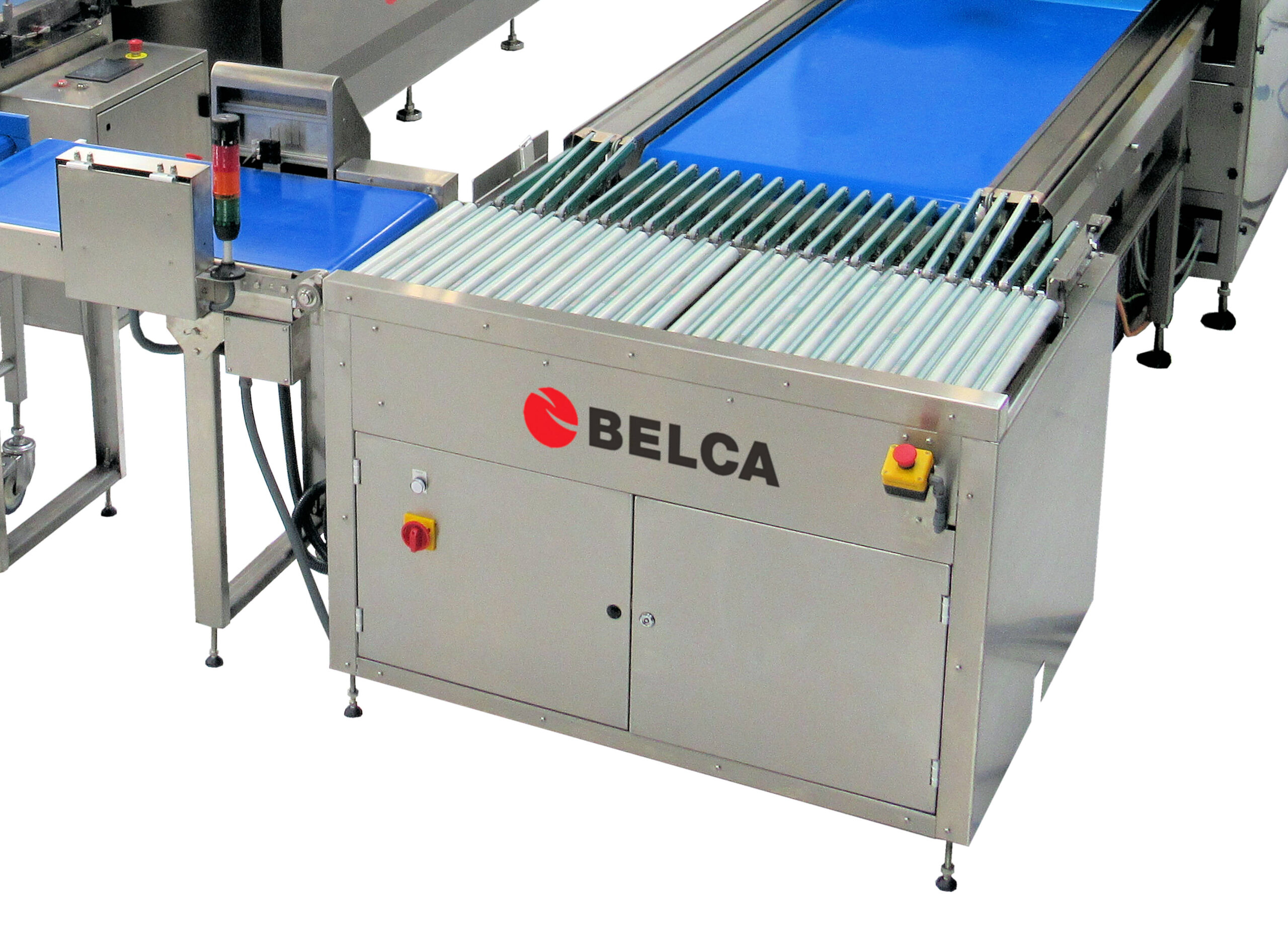

DIVERTER 1300/1100 INOX is a stainless conveyor belt equipped with optical equipment that feeds food pieces put in a plastic bag to a special transfer system that sequentially positions the pieces at the entrance of a vacuum packaging machine.
The transfer can work in both directions depending on the side in which the input band is placed.
• Line efficiency: OEE˃90%.
• Compliance with safety regulations: CE Marking, certificate, manuals in Spanish.
• Consists of:
o Stainless steel conveyor with optical control equipment.
o Mobile stainless steel exchanger system.
• Double conveyor of 24 motorized rollers with rollers of diameter 30 and step 48.
• Perpendicular traction system composed of 22 belt sections 500x8mm with central traction tractioned by the same axis.
• Pneumatic lift.
• End of the exchanger protruding from the rollers to enter the second belt conveyor.
o Fixed stainless steel exchanger system.
• Perpendicular traction system composed of 22 strap section 390x8mm with central traction tractioned by the same axis.
o Ferrules of the protruding exchanger of the rollers to enter 24 mm in the next machine.
o Security closure.
o Electric control panel.
Request further information using the attached form.
This diverter, or belt exchanger, is built for the sequencing and positioning of a wide range of products such as meat products, dairy products, etc … within the dimensions specified in the technical sheet.
Consists in a stainless conveyor belt equipped with a vision equipment that feeds products to a special transfer system that sequences and positions the pieces at the output of a flow-pack.
Mechanical construction is robust and has a versatile operation through an electronic control of the different movements of the machine. Offering high reliability in the operation, allowing adaptation to different formats and production needs.
Constructed with materials resistant to corrosion and with a structure entirely in stainless steel.
Guidance specifications, may not be up to date. Please, request more information using the contact form.
