· Self-adhesive head labeling machine.
· Set of photocells for cutting and detection.
· Conveyor belt, 300mm x 1.000mm with frequency inverter.
· Control panel with touch screen.
· Stainless steel bench with legs adjustable in height.
· CE certification, optional.
Depending on models:
Intel Celeron N3550 (2 Core, 1.1GHz, 2.40GHz, 2MB)
RAM 4GB DDR3L 1600MHz
HD 500GB 5400rpm
Display 15.6”
IntelR HD Graphics 500
Connectivity:
· WIFI 1X1 AC+BT4.0
· Ethernet
· 1 x USB 3.0
· 1 x HDMI
· 1 x Headset
Card reader 4/1(SD, SDHC, SDXC, MMC)
OS: Microsoft Windows 10 Home 64 bits + label software
Label type Self-adhesive
System Automatic
Labeling speed 50 m/min
Product detection By photocell
Label detection By photocell
Ø Coil labels 270mm. Approx.
Bench material Stainless steel
Label dimensions Adaptable
Conveyor belt 300 mm x 1.000 mm
Voltage 220V AC1 + Ground
Request further information using the attached form.

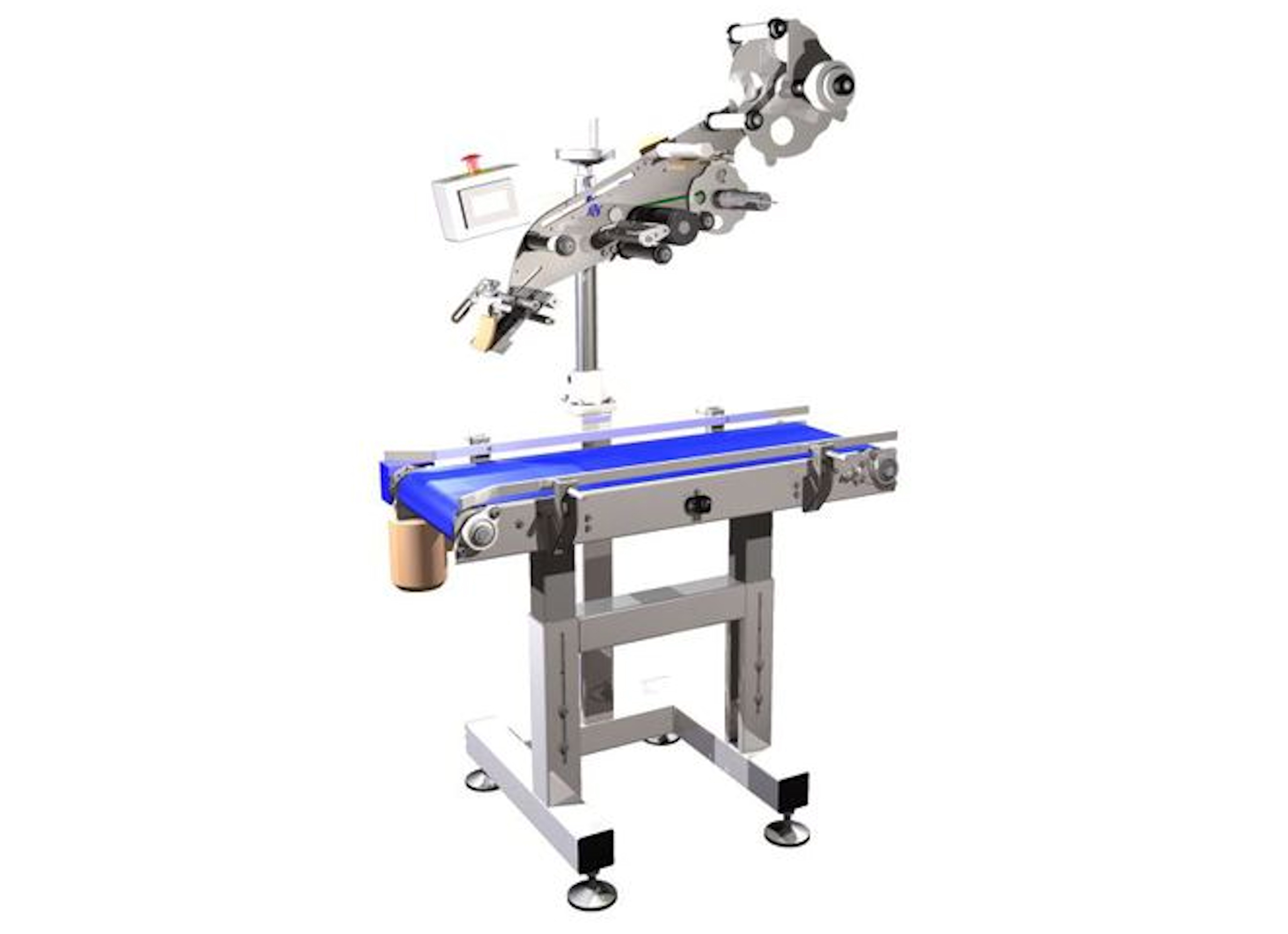

Labeling machine that integrates AC10 dispensing head on a conveyor belt.
Control panel of conveyor and head from the same menu. Memory of products and parameters. Robust chassis with height adjustment. Different types of tapes.
Special labeling systems. Guarantee seal, double labeling, precision label etc.
We are updating this section. It will be available shortly.
Guidance specifications, may not be up to date. Please, request more information using the contact form.
